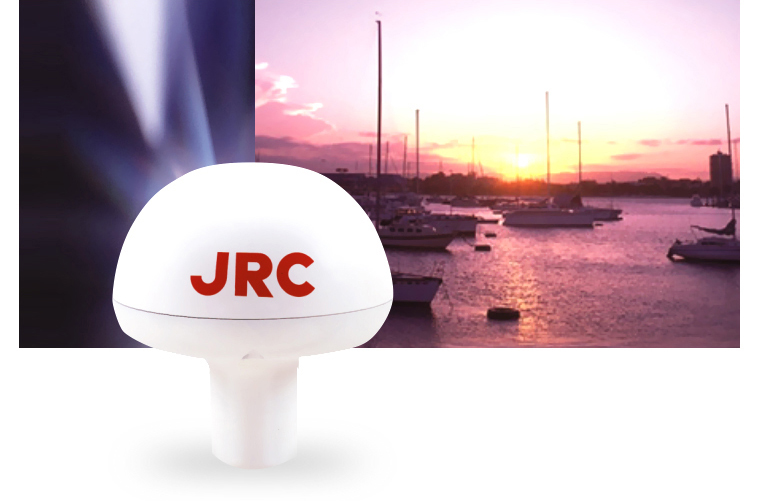

DGPS Receiver

This incorporates a beacon receiver, eliminating the need for a separate unit. You can obtain high-precision positioning in DGPS service areas.
Internal Differential Beacon Receiver
12-Channel Parallel for simultaneous reception of 12 satellites.
Quick Position Fixing
NMEA0183 Output
PPS Signal Output (Precise Clock Signal)

Features : Internal differential signal receiver

12 channels (precise positioning)

PPS signal output

Data display : NMEA0183 ver.1.5 or 2.1 selectable

ver1.5 GGA, RMC, GLL, VTG, PJRCDGP0, PJRCDGP1, PJRCDGP2

ver2.1 GGA, RMC, GLL, VTG, GSV, GSA, PJRCDGP3, DTM, MSS

PPS signal display : Positive pulse, 15 ㎲ width

Operating temperature : -25ºC to 55ºC
