탐 지_EOD 로봇

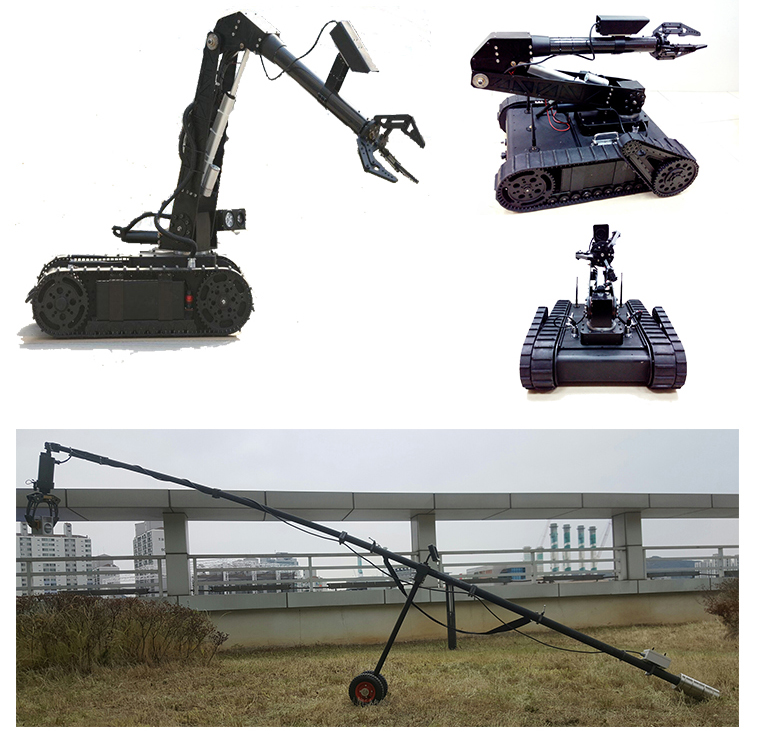

EOD Robot, 폭발물 처리 장비 EOD Robot 폭발물 처리 장비
Bomb-disposal, or explosive ordnance disposal (EOD), robots are one of the many tools a technician might use to disarm dangerous weapons. Besides the human cost of losing a bomb technician in the field, training a bomb-disposal officer is significantly more expensive than buying an EOD robot. As a result, maintaining a safe distance from a potential bomb is of paramount importance and only in extreme situations will the technician enter the blast range and put their hands on the device themselves. It's equipped with an arm-like manipulator, sensors and a camera on a boom for enabling the operator to remotely disarm ordnance and improvised explosive devices (IEDs).

폭탄 처리 또는 폭발물 처리 (EOD) 로봇은 기술자가 위험한 무기를 무력화하는 데 사용할 수 있는 많은 도구 중 하나입니다. 현장에서 폭탄 기술자를 잃는 데 드는 인적 비용 외에도, 폭탄 처리 담당자를 훈련시키는 비용보다 EOD Robot를 구매하는 비용이 훨씬 저렴합니다. 폭탄으로부터 안전한 거리를 유지하는 것이 가장 중요하며, 극한 상황에서만 기술자가 폭발 범위에 들어가 기계를 조정합니다. 운전자가 무장 및 폭발 장치 (IED)를 원격으로 조종 할 수 있도록 조작기, 센서 및 카메라가 장착되어 있습니다.



크 기          : 810 × 550 × 460mm
무 게          : 31kg (배터리 포함)
배터리          : 24V, 20AH (확장 시 : 24V, 40AH)
최대 속도        : 1.5m / s
등반 능력        : 38 °계단, 40 °경사 이동 가능
운영 시간        : 2시간 이상
보호 등급        : IP65
팔 회전각        : 0 ~ + 360 °
집게 최대 벌림  : 170mm
인양 능력        : 수축 시 - 8kg
          확장 시 - 3kg
